FOMTEC Enviro USP
Opis
Fomtec Enviro USP is a fluorine-free foam consisting of selected hydrocarbon surfactants, solvents and stabilizers to give optimal fire performance. Fomtec Enviro USP is especially designed to be an effective fluorine-free alternative for sprinkler systems, type II and III discharge devices. Fomtec Enviro USP should be used at 2% with fresh water for low, medium and high expansion discharge devices. For sprinkler systems it should be used in 3% proportioning. For use on class A type fires induction ratio of 0.5-1% is recommended depending on application and discharge device.
Features
- New Generation Fluorine Free Foam
- All In One Foam: Made for any type of foam discharge devise and sprinkler system on the market
- For Class A & B Hydrocarbon Fires & Fully Biodegradable
- Approved: As Low, Medium & High Expansion Foam
- Induction: 0,5-1% Class A, 2% EN1568, 3% Sprinkler Fires
- Superior Fire Performance: Rate 1A, EN 1568 Part 3
Application
Fomtec Enviro USP is intended for use on class B hydrocarbon fuel fires such as oil, diesel and aviation fuels as well as class A fires such as wood, paper, textiles etc. Fomtec Enviro USP is especially suited whenever a fluorine-free alternative with high fire performance is requested. It is compatible with all dry chemical powders and can be used in powder/foam twin agent systems.
Fire Performance & Foaming
The fire performance of this product has been measured and documented according to „International Approvals” stated in this document. The design parameters depend on type of system and application. The use of the product should follow design guidelines. The foaming properties are depending on equipment used and other variables such as water and ambient temperatures. Average expansion 7,5:1, average ¼ drainage time 25:00 minutes using UNI 86 test nozzle.
Proportioning
Fomtec Enviro USP can easily be proportioned at the correct dilution using conventional equipment such as:
- Inline inductors
- Inline Balanced Pressure, proportioning systems (ILBP)
- Bladder tanks and ratio controllers
- Around the pump proportioning systems
- Water motor or turbine driven foam proportioners
- Self inducting branch pipes and nozzles
The equipment should be designed to the foam type.
Compatibility
Contact one of the Fomtec sales team with questions.
Technical data
| Appearance | Clear yellowish liquid |
| Specific gravity at 20°C | 1,04 ± 0.01 g/ml |
| Viscosity at 25°C spindle #4, 60 rpm | 1500 mPas |
| pH | 6,5 – 8,5 |
| Freezing point | -11°C |
| Recommended storage temperature | 0 – 55°C |
| Suspended sediment (v/v) | Less than 0,2% |
Environmental impact
Fomtec Enviro USP is formulated using specially selected raw materials, selected for their fire performance and their environmental profile. Fomtec Enviro USP is fully biodegradable and contain no fluorinated compounds.
The handling of spill of concentrate or foam solutions shall however be made according to local regulations. Normally sewage systems will have no problem with a 3% foam solution based on Fomtec Enviro USP, but local sewage operators should be consulted in this respect.
Full details will be found in the Material Safety Datasheet (MSDS).
Storage / Shelf life
Stored in original unbroken packaging the product will have a long shelf life. Shelf life of 10-20 years will be found in temperate climates. As with all foams, shelf life will be dependent on storage temperatures and conditions.
Synthetic foam concentrates should only be stored in stainless steel or plastic containers. Since electrochemical corrosion can occur at joints between different metals when they are in contact with foam concentrate, only one
type of metal should be used for pipelines, fittings, pumps, and tanks employed in the storage of foam concentrates. We recommend following our guidelines for storage and handling ensuring favourable storage conditions.
Packaging

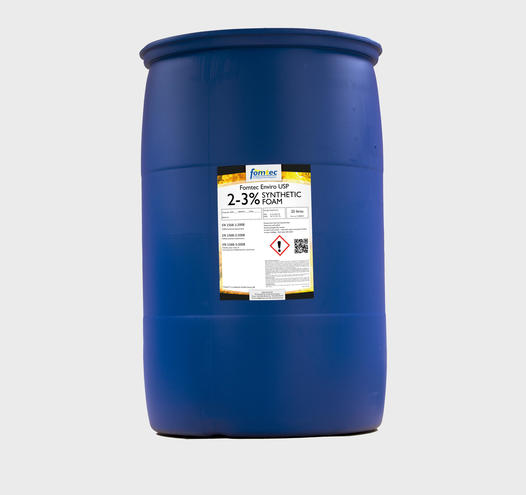

We supply this product in 25 litre and 5 US gallon cans, 200 litre and 55 US gallon drums, 1000 litre and 275 US gallon IBC containers and in bulk on special request.
| Litres per piece | Packaging | Part no |
| 25 litres | Can | 11-6001-01 |
| 200 litres | Drum | 11-6001-02 |
| 1000 litres | Container | 11-6001-04 |
| 5 US gal. | Can | |
| 55 US gal. | Drum | |
| 275 US gal. | Container | |
| Bulk | Special request |
International Approvals
- Underwriters Laboratories, UL 162, 7th Edition
Tested and issued by MPA Dresden, Germany
- EN 1568 Part 1, 2, 3 Rate: 1A
- ICAO Level B
Inspection/Testing/ Maintenance
The foam concentrate should be tested annually. The testing should be made by a suitable laboratory for analysis of foam concentrates and should measure: pH, specific gravity, expansion, drainage time as per NFPA 11 annex D or Fomtec test procedure 1304, film formation test as per FM 5130 point 4.5 or Fomtec test procedure 1306, and viscosity as per FM 5130 Appendix J or Fomtec test procedure 1305.
Storage containers should be inspected and reevaluated for the suitability of the storage location in regards to temperature fluctuations (temperature should be as stable as possible). Exposure to direct sunlight should be avoided.
