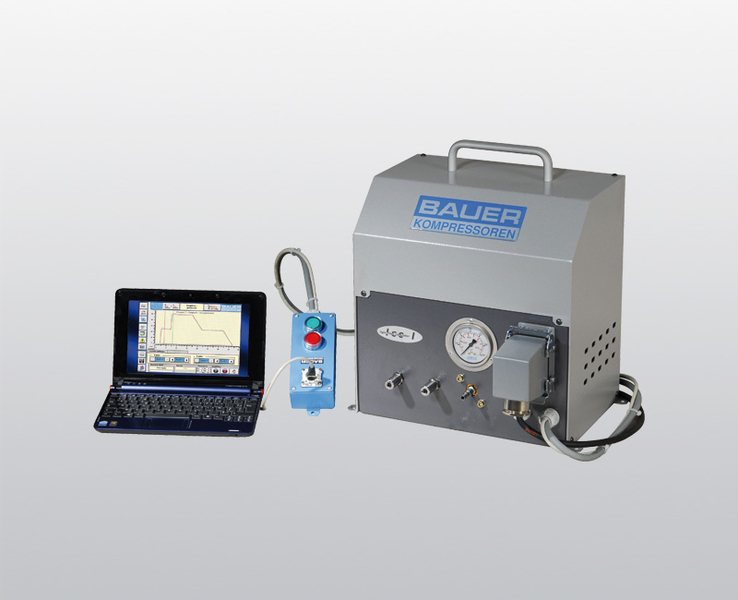

LCC I – Control panel for gas injection technology from 5 to 400 bar
BAUER LCC I
Opis
| Display: | External laptop |
|---|---|
| Data storage: | On internal CF card, external via USB (program data and process data) |
| Interface: | Ethernet port for the connection of a laptop |
| FCC / injection-moulding machine synchronisation: | Compatible with EUROMAP 62 |
| Cleaning cycle: | Automatic |
| Power supply: | 230 V / 50 Hz |
| Dimensions (L × W × H): | 390 × 350 × 420 mm |
| Weight: | 27 kg (2 valves) |
| Long cable for remote control: | 6 m |
| Proportional valves: | 1 to 2 |
|---|---|
| Type: | High-pressure proportional valve |
| Max. input pressure: | 420 bar |
| Control pressure range: | 5 to 400 bar |
| Accuracy: | ± 5 bar |
| Power supply: | 24 V, 5 A min. per channel |
| Filter: | 25 µm |
