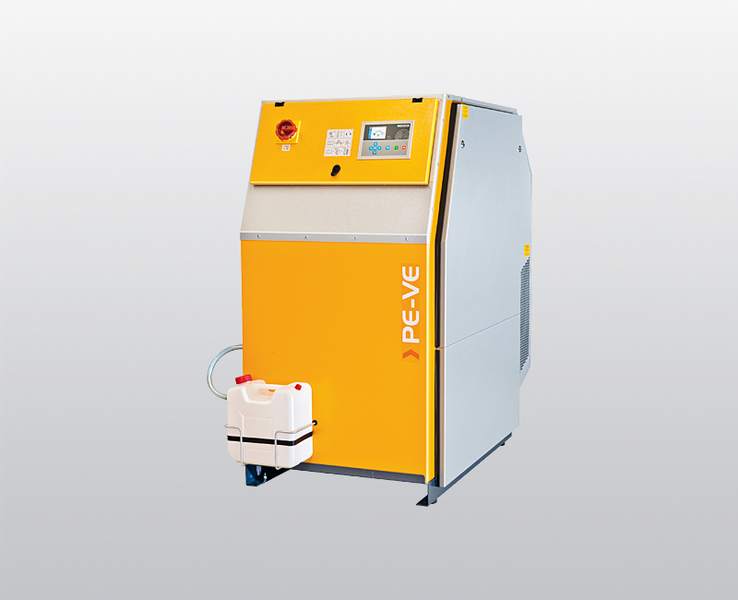

BAUER 90 – 420 bar, air & nitrogen (PE-VE-series)

The PE-VE range – an all-rounder for the industrial sector

SKU: 933 Kategoria:

Opis


Type

designation

Effective

free air delivery ¹

Max. operating

pressure ²

No. of

compr. stages

Speed Motor

output

Power

consumption ¹

Net weight approx.
l/min m³/h cfm bar psig rpm kW kW kg lbs
PE 100-3-VE 85 5.1 3 365 5300 3 900 3 2.2 270 595
PE 100-4-VE 125 7.5 4.4 365 5300 3 1270 4 3.3 275 610
PE 120-4-VE 170 10.2 6 365 5300 3 1200 4 3.7 275 610
PE 120-5.5-VE 215 12.9 7.6 365 5300 3 1470 5.5 4.7 290 640
PE 120-7.5-VE 260 15.6 9.2 365 5300 3 1800 7.5 6.5 305 675
PE 12.14-11-VE ³ 350 21 12.4 365 5300 4 1800 11 9.4 325 720
PE 150-11-VE 500 30 17.7 365 5300 4 1230 11 10.2 350 770
PE 180-15-VE 620 37.2 21.9 365 5300 4 1440 15 14 365 805


PE-VE high pressure compressor, 300 – 515 l/min, 90 – 420 bar



Type

designation

Effective

free air delivery ¹

Max. operating

pressure ²

No. of

compr. stages

Speed Motor

output

Power

consumption ¹

Net weight approx.
l/min m³/h cfm bar psig rpm kW kW kg lbs
PE 12.14-7.5-VE-420 ³ 300 18 10.6 420 6100 4 1450 7.5 6.9 300 660
PE 18.1-11-VE-420 450 27 15.9 420 6100 5 1400 11 10.4 380 840
PE 18.1-15-VE-420 515 30.9 18.2 420 6100 5 1490 15 13 380 840





¹ Free air delivery according to ISO 1217, power consumption at maximum final pressure under certain conditions. Other ambient conditions result in different performance data. Values valid for 50 Hz.

² Max. operating pressure = max. safety valve pressure setting; reduced switch-off pressure.

³ Not suitable for nitrogen
